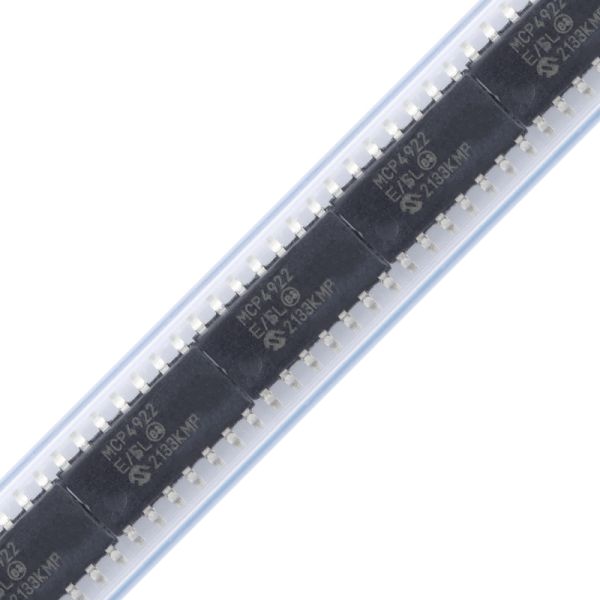

MCP4922-E/SL 8/10/12-Bit Dual Voltage Output Digital-to-Analog Converter with SPI Interface
The MCP4922-E/SL is a high-performance dual voltage output digital-to-analog converter featuring SPI interface compatibility. This versatile DAC family offers multiple resolution options for precision analog output applications.
Key Features
- MCP4902: Dual 8-Bit Voltage Output DAC
- MCP4912: Dual 10-Bit Voltage Output DAC
- MCP4922: Dual 12-Bit Voltage Output DAC
- Rail-to-Rail Output
- SPI Interface with 20 MHz Clock Support
- Simultaneous Latching of Dual DACs with LDAC Pin
- Fast Settling Time of 4.5 µs
- Selectable Unity or 2x Gain Output
- External Voltage Reference Inputs
- External Multiplier Mode
- 2.7V to 5.5V Single-Supply Operation
- Extended Temperature Range: -40°C to +125°C
Applications
- Set Point or Offset Trimming
- Precision Selectable Voltage Reference
- Motor Control Feedback Loop
- Digitally-Controlled Multiplier/Divider
- Calibration of Optical Communication Devices
Product Family Comparison
| Part Number |
DAC Resolution |
Number of Channels |
Voltage Reference |
| MCP4801 |
8-bit |
1 |
Internal (2.048V) |
| MCP4811 |
10-bit |
1 |
Internal (2.048V) |
| MCP4821 |
12-bit |
1 |
Internal (2.048V) |
| MCP4802 |
8-bit |
2 |
Internal (2.048V) |
| MCP4812 |
10-bit |
2 |
Internal (2.048V) |
| MCP4822 |
12-bit |
2 |
Internal (2.048V) |
| MCP4901 |
8-bit |
1 |
External |
| MCP4911 |
10-bit |
1 |
External |
| MCP4921 |
12-bit |
1 |
External |
| MCP4902 |
8-bit |
2 |
External |
| MCP4912 |
10-bit |
2 |
External |
| MCP4922 |
12-bit |
2 |
External |
