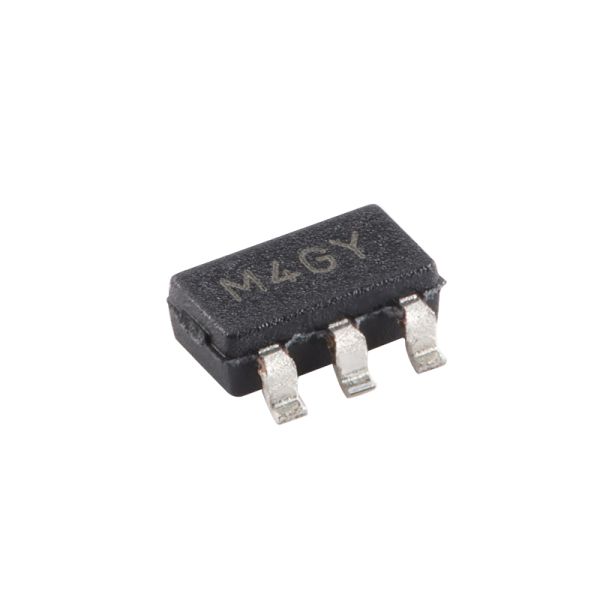

24LC08BT-I/OT 8K I²C Serial EEPROM
Single Supply With Operation Down To 1.7V For 24AA08 And 24FC08 Devices, 2.5V For 24LC08B Devices
Product Overview
The Microchip Technology Inc. 24XX08 is an 8-Kbit Electrically Erasable PROM (EEPROM). The device is organized as four blocks of 256 x 8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 µA and 1 mA, respectively. The 24XX08 also has a page write capability for up to 16 bytes of data.
Key Features
- Single Supply with Operation down to 1.7V for 24AA08 and 24FC08 Devices, 2.5V for 24LC08B Devices
- Low-Power CMOS Technology: Read current 1 mA maximum, Standby current 1 µA maximum (I-temp.)
- 2-Wire Serial Interface, I2C Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kHz, 400 kHz and 1 MHz Compatibility
- Page Write Time: 5 ms Maximum
- Self-Timed Erase/Write Cycle
- 16-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection >4,000V
- More than 1 Million Erase/Write Cycles
- Data Retention >200 Years
- Factory Programming Available
- RoHS Compliant
- Temperature Ranges: Industrial (-40°C to +85°C), Extended (-40°C to +125°C)
- Automotive AEC-Q100 Qualified
Available Packages
- 8-Lead DFN, 8-Lead MSOP, 8-Lead PDIP, 8-Lead SOIC, 8-Lead TDFN, 8-Lead TSSOP, 8-Lead UDFN
- 5-Lead SOT-23 and 4-Ball CSP
Pin Description
| Name |
DFN |
MSOP |
PDIP |
SOIC |
TDFN |
TSSOP |
UDFN |
SOT-23 |
CSP |
Description |
| A0 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
— |
— |
Not Connected |
| A1 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
— |
— |
Not Connected |
| A2 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
— |
— |
Not Connected |
| VSS |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
2 |
2 |
Ground |
| SDA |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
3 |
4 |
Serial Address/Data I/O |
| SCL |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
1 |
3 |
Serial Clock |
| WP |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
5 |
— |
Write-Protect Input |
| VCC |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
4 |
1 |
Power Supply |
