LL4148 Small Signal Switching Diode with 75V Peak Reverse Voltage 200mA Forward Current and 4 ns Recovery Time

Brand Name : MDD

Model Number : LL4148

Certification : rohs

Place of Origin : CN

MOQ : 1

Price : consult with

Payment Terms : T/T,Western Union

Supply Ability : 100000

Delivery Time : 5-8days

Packaging Details : T/R

Recovery Time : 4 ns

Vf - Forward Voltage : 1 V

Ir - Reverse Current : 5 uA

Peak Reverse Voltage : 100 V

Max Surge Current : 2 A

If - Forward Current : 150 mA

Contact Now

LL4148 Small Signal Switching Diodes Small Signal Diode 75V 200mA

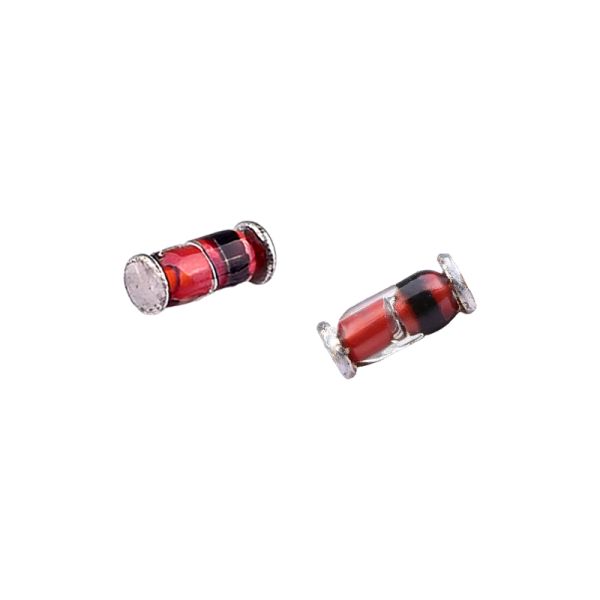

Fast switching diode in MiniMELF case especially suitedfor automatic surface mounting

LL4148 Small Signal Switching Diode with 75V Peak Reverse Voltage 200mA Forward Current and 4 ns Recovery Time

Parameter	Symbol	Value	Unit
Peak Reverse Voltage	VRM	100	V
Reverse Voltage	VR	75	V
Average Rectified Forward Current	IF(AV)	200	mA
Non-repetitive Peak Forward Surge Current at t = 1 s	IFSM	0.5	A
Non-repetitive Peak Forward Surge Current at t = 1 ms	IFSM	1	A
Non-repetitive Peak Forward Surge Current at t = 1 μs	IFSM	4	A
Power Dissipation	Ptot	500 ¹⁾	mW
Junction Temperature	Tj	175	°C
Storage Temperature Range	Tstg	- 65 to + 175	°C

¹⁾ Valid provided that electrodes are kept at ambient temperature.

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
