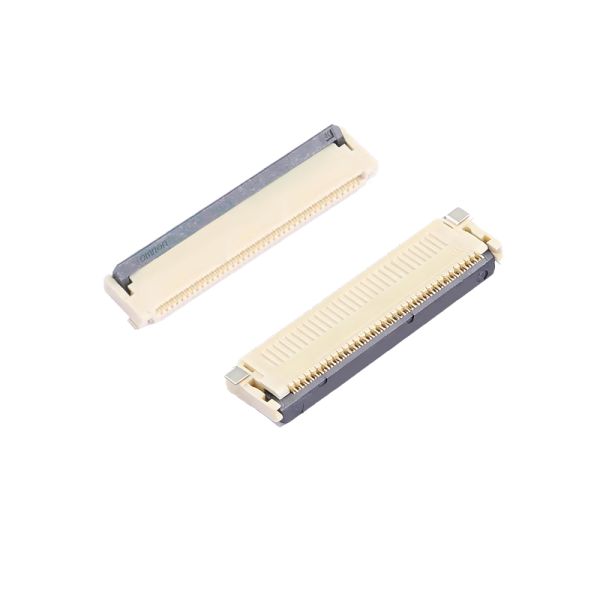

XF2M-4015-1A FFC & FPC Connectors .5mm Rotary BackLock SMT Dual 40P Adhesv
Product Features
- Models available with 0.5-mm or 1.0-mm pitch.
- Models available with dual-sided contacts or upper sided.
(Models with upper sided come only with a 0.5-mm pitch.)
- Models available with gold or Tin-plated.
(Tin-plated is available only with models with dual-sided contacts.)
- Models with 80 pins (multiple type) available with 0.5-mm pitch.
- Applicable FPC/FFC thickness of 0.3 mm.
- Halogen Free (*)
- See the "Standards certification / conformity list" for information on
conformity to certification standards.
* OMRON uses the following standard to determine halogen-free construction: 900 ppm
max. for Br, 900 ppm max. for Cl, and 1,500 ppm max. for Br+Cl.
Ratings and Specifications
| Rated current |
0.5 A AC/DC |
| Rated voltage |
50 V AC/DC |
| Contact resistance |
50 mΩ max. (at 20 mV DC max., 100 mA max.) |
| Insulation resistance |
100 MΩ min. (at 250 V DC) |
| Dielectric strength |
250 V AC for 1 min. (leakage current: 1 mA max.) |
| Insertion durability |
Gold-plated: 20 times
Tin-plated: 10 times |
| Ambient operating temperature |
−30 to 85 °C (With no icing or condensation) |
