GD25Q32ESIG Uniform Sector Dual And Quad Serial Flash
32M-bit Serial Flash memory with 4096K-Byte capacity, 256 Bytes per programmable page, operating at 2.7V~3.6V with 500μs programming speed.
Key Features
- 32M-bit Serial Flash: 4096K-Byte capacity, 256 Bytes per programmable page
- Fast Program/Erase Speed: Page Program: 0.5ms typical, Sector Erase: 45ms typical, Block Erase: 0.15s/0.25s typical, Chip Erase: 12s typical
- Standard, Dual, Quad SPI: Supports multiple SPI interface configurations
- Flexible Architecture: Uniform Sector of 4K-Byte, Uniform Block of 32/64K-Byte
- High Speed Clock Frequency: 133MHz for fast read, Dual I/O up to 266Mbits/s, Quad I/O up to 532Mbits/s
- Low Power Consumption: 12μA typical standby current, 1μA typical deep power down
- Software/Hardware Write Protection: Comprehensive memory protection options
- Advanced Security Features: 128-bit Unique ID, SFDP register, 3x1024-Byte Security Registers with OTP Locks
- Endurance and Data Retention: 100,000 Program/Erase cycles minimum, 20-year data retention
- Single Power Supply Voltage: Full range 2.7-3.6V operation
Pin Configuration
| Pin No. |
Pin Name |
I/O |
Description |
| 1 |
CS# |
I |
Chip Select Input |
| 2 |
SO (IO1) |
I/O |
Data Output (Data Input Output 1) |
| 3 |
WP# (IO2) |
I/O |
Write Protect Input (Data Input Output 2) |
| 4 |
VSS |
|
Ground |
| 5 |
SI (IO0) |
I/O |
Data Input (Data Input Output 0) |
| 6 |
SCLK |
I |
Serial Clock Input |
| 7 |
HOLD# (IO3) |
I/O |
Hold Input (Data Input Output 3) |
| 8 |
VCC |
|
Power Supply |

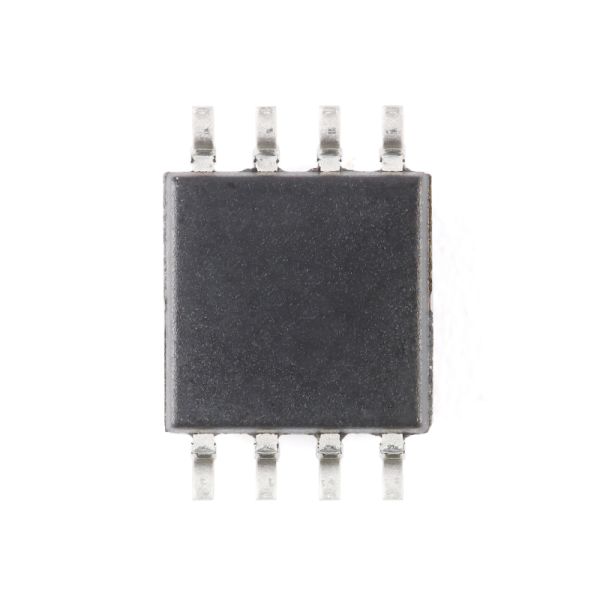

Product Images
