GD25Q256EYIGR 3.3V Uniform Sector Dual And Quad Serial Flash 250us 2.7V~3.6V

Product Categories
Shenzhen Filetti Technology Co., LTD
Contact Now

GD25Q256EYIGR 3.3V Uniform Sector Dual And Quad Serial Flash 250us 2.7V~3.6V

Brand Name : GigaDevice

Model Number : GD25Q256EYIGR

Certification : rohs

Place of Origin : CN

MOQ : 1

Price : consult with

Payment Terms : T/T,Western Union

Supply Ability : 100000

Delivery Time : 5-8days

Packaging Details : T/R

Operating Temperature : -40℃~+85℃

operating voltage : 2.7V~3.6V

Interface Type : SPI

Storage Capadity : 256Mbit

Clock Frequency (fc) : 133MHz

Page write time (Tpp) : 250us

Contact Now

GD25Q256EYIGR 3.3V Uniform Sector Dual And Quad Serial Flash 250us 2.7V~3.6V
Product Overview
The GD25Q256EYIGR is a high-performance 256M-bit Serial Flash memory featuring uniform sector architecture and support for Standard, Dual, and Quad SPI interfaces. Operating at 2.7V-3.6V with fast program/erase speeds, this device is ideal for demanding embedded applications.
Key Features
  • 256M-bit Serial Flash - 32M-Byte capacity with 256 bytes per programmable page
  • Multiple SPI Interfaces - Standard, Dual, and Quad SPI support with 3 or 4-Byte Address Mode
  • High-Speed Performance - 133MHz clock frequency with data transfer up to 532Mbits/s in Quad mode
  • Comprehensive Write Protection - Software/hardware protection for all or portion of memory
  • Fast Program/Erase - 0.25ms page program time and 30ms sector erase time typical
  • Flexible Architecture - Uniform 4K-Byte sectors and 32/64K-Byte blocks
  • Low Power Consumption - 16μA standby current and 1μA deep power down current
  • Advanced Security - 128-bit Unique ID, SFDP register, and security registers with OTP locks
  • High Reliability - 100,000 program/erase cycles minimum with 20-year data retention
Pin Configuration
Pin No. Pin Name I/O Description
1 HOLD# (IO3) I/O Hold Input (Data Input Output 3)
2 VCC Power Supply
3 RESET# I Reset Input
7 CS# I Chip Select Input
8 SO (IO1) I/O Data Output (Data Input Output 1)
9 WP# (IO2) I/O Write Protect Input (Data Input Output 2)
10 VSS Ground
13 DNU Do Not Use (It may connect to internal signal inside)
15 SI (IO0) I/O Data Input (Data Input Output 0)
16 SCLK I Serial Clock Input

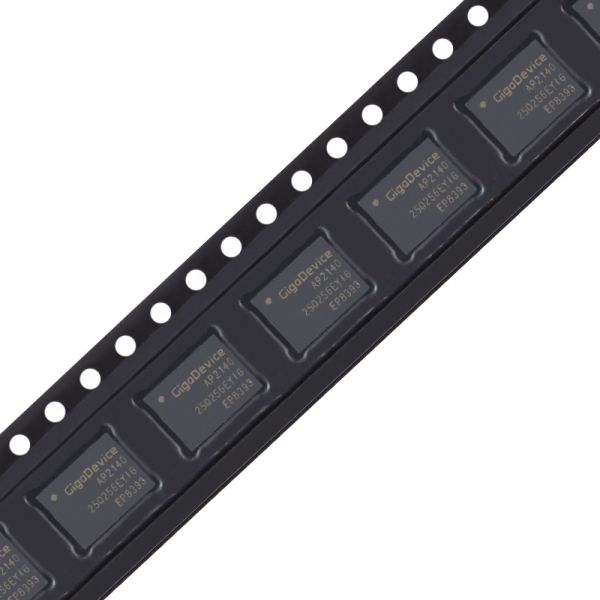

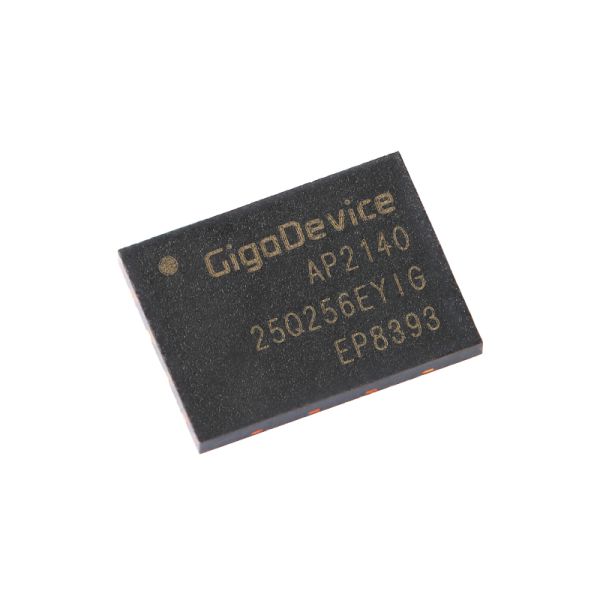

Product Images
GD25Q256EYIGR 3.3V Uniform Sector Dual And Quad Serial Flash 250us 2.7V~3.6V GD25Q256EYIGR 3.3V Uniform Sector Dual And Quad Serial Flash 250us 2.7V~3.6V GD25Q256EYIGR 3.3V Uniform Sector Dual And Quad Serial Flash 250us 2.7V~3.6V GD25Q256EYIGR 3.3V Uniform Sector Dual And Quad Serial Flash 250us 2.7V~3.6V
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
